Home > Consumer Electronics > Commerce & Finance Electronics > POS Terminal & Cash Register > Honeywell 2D Barcode Reader Module
US$ 1 - 150
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Netum
Model Number:
NT-80
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NT-5890T Supermarket 58mm USB Mini Thermal Receipt Printer in POS SystemUS$ 1 - 59MOQ: 1 Piece -
High Quality: NT-M5 2D USB Wired Handheld Barcode Scanner Support QR, PDF417 and DataMatrix CodeUS$ 1 - 50MOQ: 10 Pieces
-
Hot Selling: NT-2019R 2D USB Wired Handheld Barcode ScannerUS$ 1 - 60MOQ: 10 Pieces
-
New Product: NT-M5 2D USB Wired Handheld Barcode Scanner Support QR, PDF417 and DataMatrix CodeUS$ 1 - 50MOQ: 10 Pieces
-
New Products: NT-1209 2D Bluetooth IP67 Industrial Waterproof Handheld Barcode ScannerUS$ 1 - 95MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Netum
Model Number
NT-80
Specifications
. Size: 38mm*19mm*10mm2. Interface: RS232-C,USB
3. Image Sensor: 0.35Mega pixels, 752*480

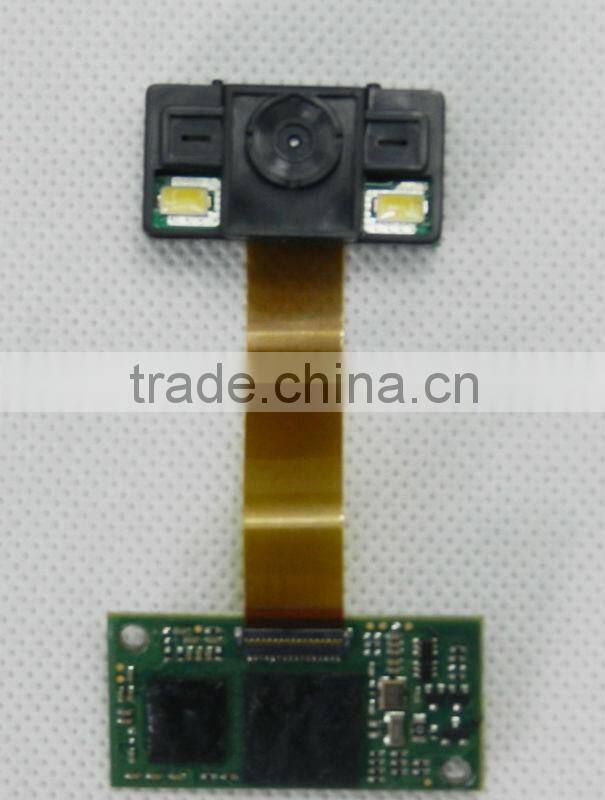

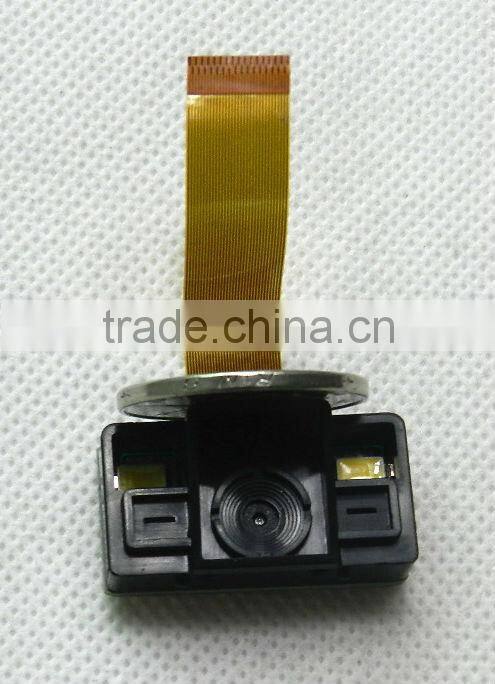

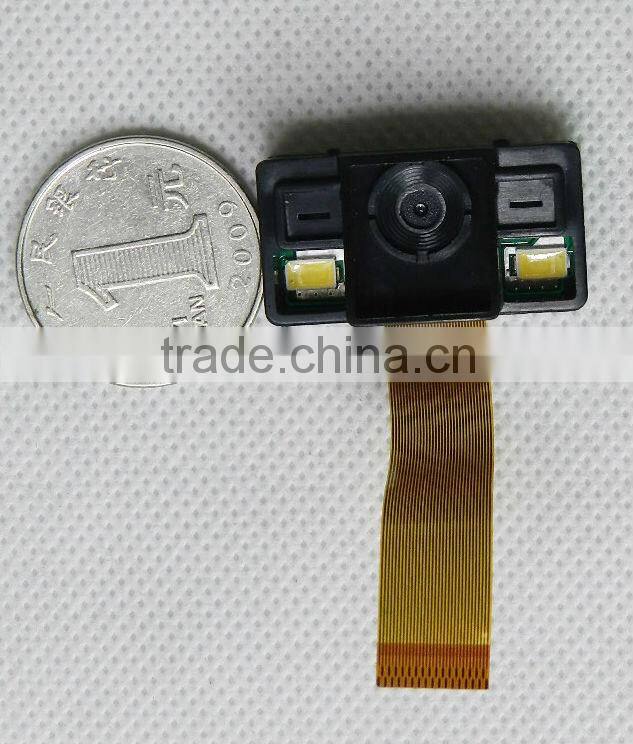

Honeywell 2D Barcode Reader Module
Principle of Window Design of 2D Barcode Scanner Engine
1. Opaque parts of window should not obscure illumination light, aiming light and lens.
2. Apply high wear-resistant material, such as double-sided hard coating material.
3. It is better to make window glass parallel to lens. Window must be perpendicular to the front plate of NT-80 and distance between them should not exceed 1mm. For tilt design , the distance must be more than 1mm. Meanwhile, the distance and tilt angle ensure the light is not reflected into lens by the window glass.
| Performance | |
| Illumination | 630 nm LED |
| Aiming | 528 nm LED |
| Field of View | 34° V x 46° H( (Vertical*Horizontal) |
| Scan Angles | Tilt: 360°, Pitch: ±65°, Skew: ± 60° |
| Symbologies | |
| 1D | UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32 |
| PDF417 (and Variants) | PDF417, microPDF417 and composite codes |
| Postal | U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch |
| 2-D | MaxiCode, DataMatrix (ECC 200), and QR Code |
| Print Contrast | 25% minimum reflectance |
| Motion Tolerance | Horizontal velocity: 5 in. (12.7 cm) per second |
| Motion Tolerance | Horizontal velocity: 5 in. (12.7 cm) per second |
| Interfaces Supported | RS-232C; USB (Standard, IBM SurePOS, Macintosh) |
| Imaging Characteristics | |
| Image (Pixels) | 0.35 Megapixel 752 pixels H x 480 pixels V |
| Graphics Format Support | Images can be exported as Bitmap, Jpeg, and Tiff |
| Image Transfer Speed | USB 1.1: Up to 12 Megabits/second RS232: Up to 115 kb baud rate |
| Image Transfer Time | Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb |
| User Environment | |
| Operating Temperature | 32° to 122° F / 0° to 50° C |
| Storage Temperature | '-40° to 158° F / -40° to 70° C |
| Humidity | 5% to 95%, non-condensing |
| Drop/Shock Specifications | Withstands 2000g to concrete |
| Ambient Light Immunity | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting. |
Definition of 12 pin
| PIN | Definition |
| 1 | NC |
| 2 | VCC |
| 3 | GND |
| 4 | RX/D- |
| 5 | TX |
| 6 | CTS/D+ |
| 7 | RTS |
| 8 | PWRDWN |
| 9 | BEEPER |
| 10 | GOODREAD |
| 11 | WAKE |
| 12 | TRIG |
